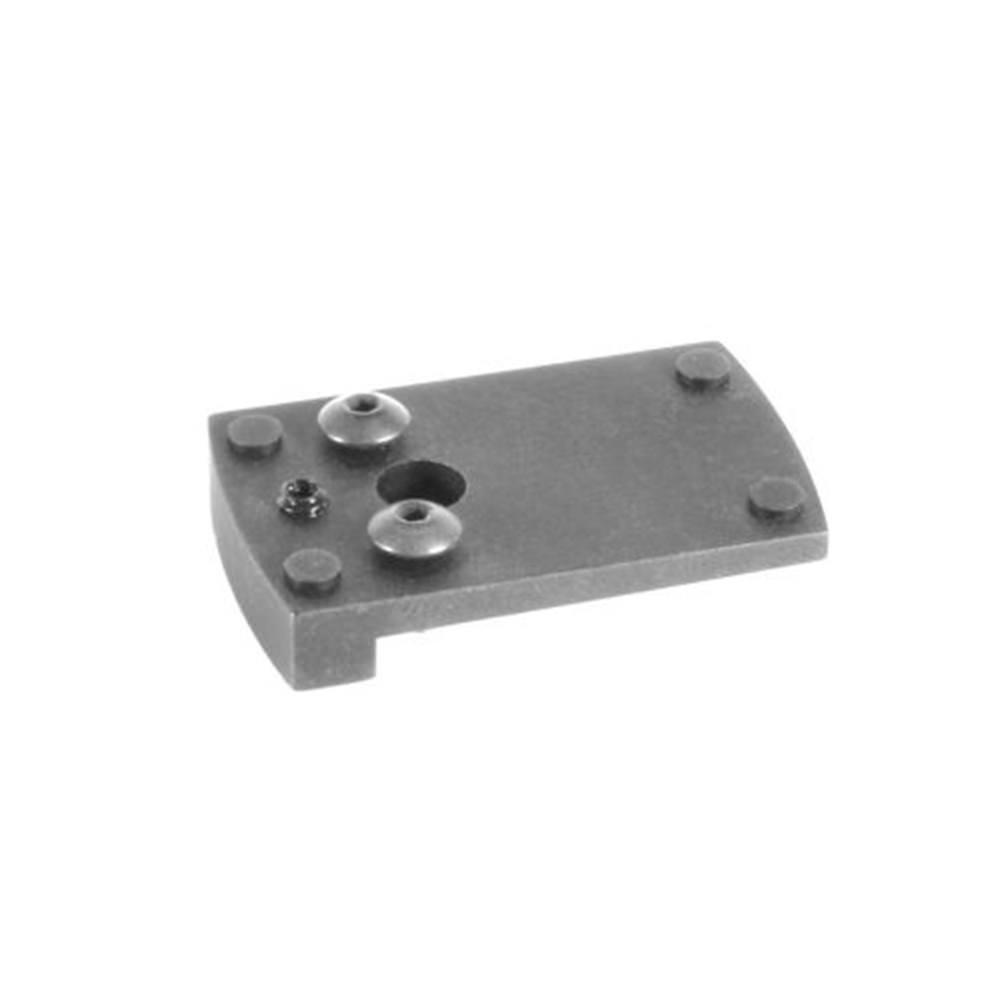

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.604"
Overall Width: .99"
Mounting Hardware: (2) 6-32 Button Head Screws, (1) 6-32 Set Screw, (1) 6-32 Torx Head Screw
Red Dot Fitment: Leupold DeltaPoint Pro, JPoint, Shield RMS/RMSc/SMS, Redfield Accelerator, Optima, Holosun 407K/507K (the rear pins on the mount must be removed for the Holosun 407K/507K to sit on the mount)

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

The elevation screw from the original rear sight is re-used in the center hole on this mount. An extra screw is available for purchase below as well.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Leupold DeltaPoint Pro, JPoint, Redfield Accelerator, or Optima red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

Installation Instructions

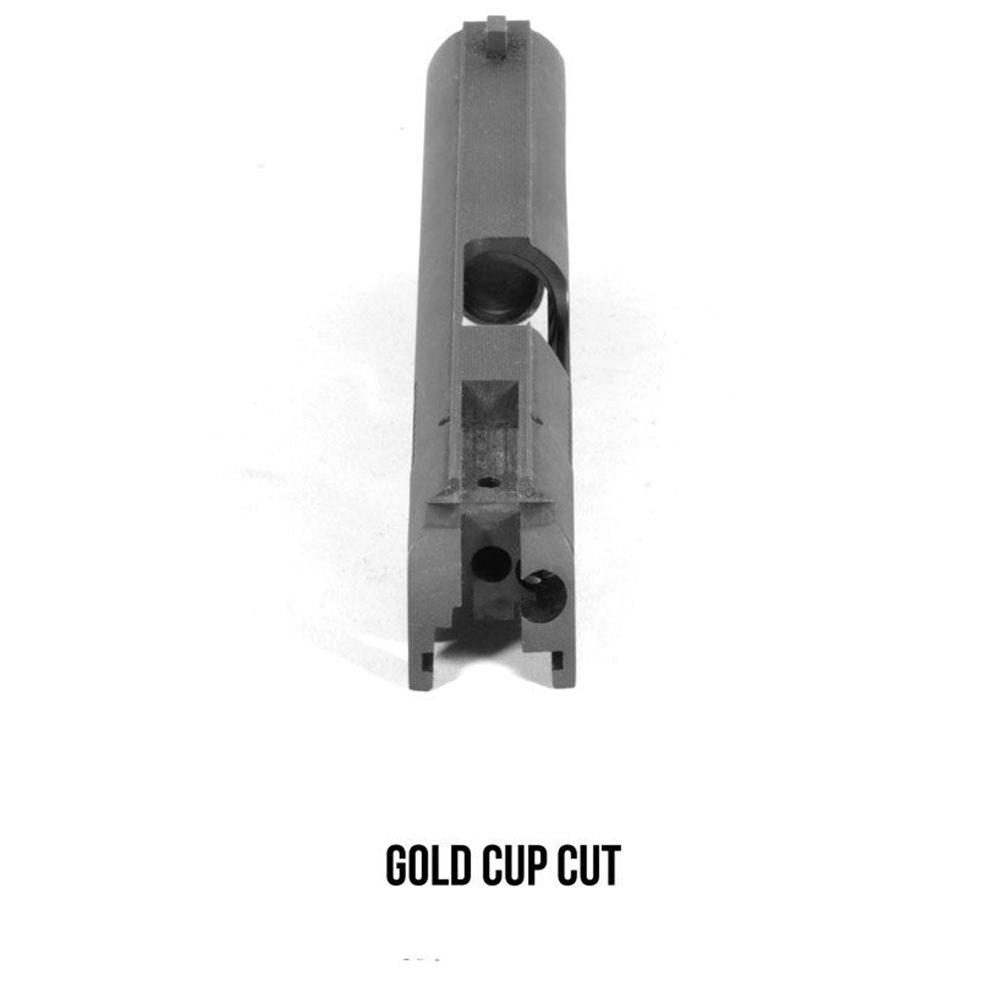

- Remove the rear sight*

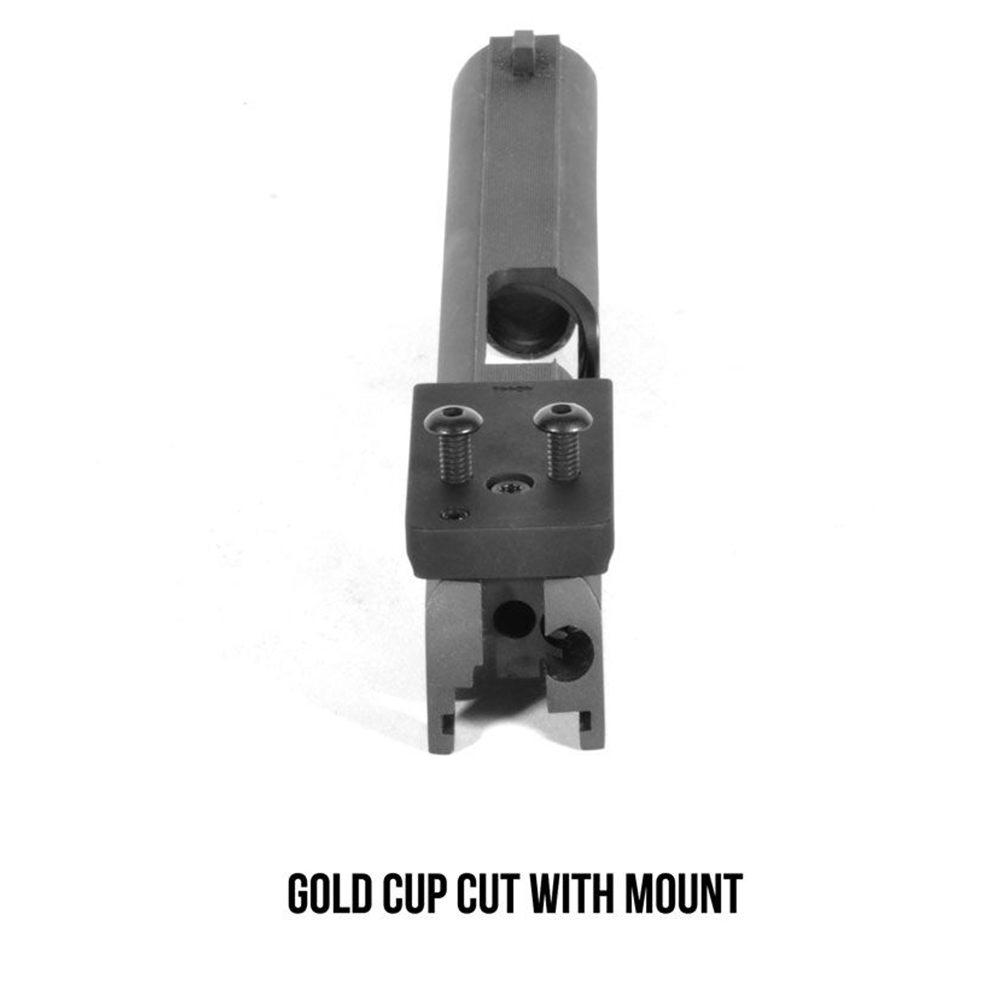

- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs

Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

Click here to see a video from Vortex on how to install our red dot base on a slide.
