Vortex Diamondback HP Rifle Scope 4-16x42 Dead-Hold BDC Reticle

ID: DBK-10019 UPC: 875874005440 CLASSIFICATION: PAL REQUIRED

View More Items by: Vortex

$449.00

Availability in stock, 4 Available

What's in the Box

4-inch sunshade, Protective lens caps, Lens cloth

Product Information
Review

Product Information

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and colour fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.

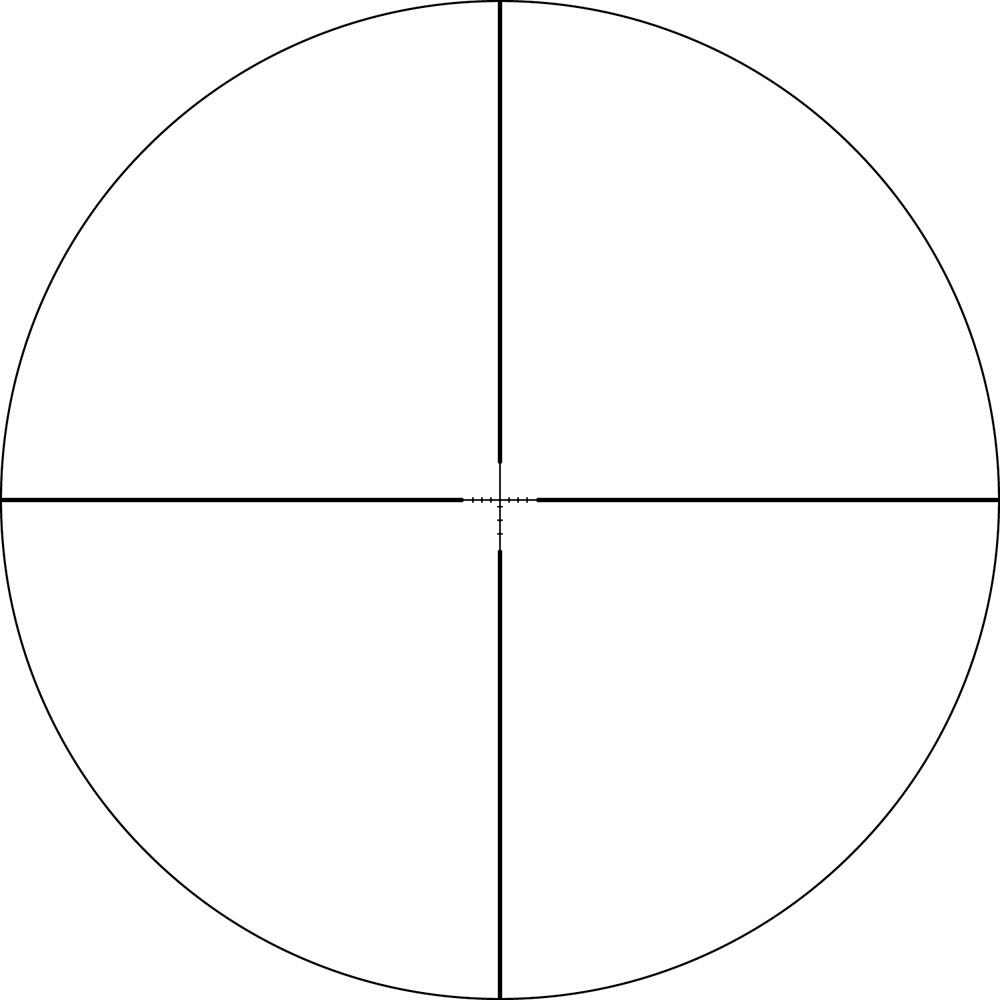

Dead-Hold BDC Reticle

SKU	VT-DBK-10019
Magnification	4 – 16
Objective Lens Diameter	42 mm
Eye Relief	4.0 inches
Field of View	23.8–6.1 feet/100 yards
Tube Size	1 inch
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel per Rotation	15 MOA
Max Elevation Adjustment	80 MOA
Max Windage Adjustment	80 MOA
Parallax Setting	30 yards to infinity
Length	12.5 inches
Weight	18 ounces

Optical Features
XD Lens Elements	Extra-low dispersion (XD) glass increases resolution and colour fidelity, resulting in crisp, sharp images.
XR Fully Multi-Coated	Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle	Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features
Tube Size	1-inch diameter.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Capped Reset Turrets	Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.
Side Focus	Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
